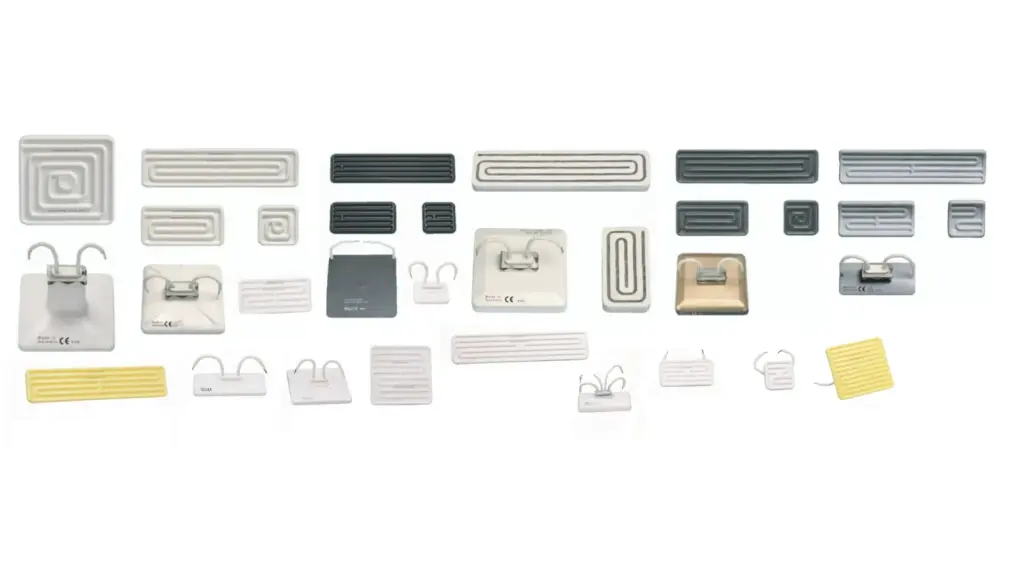

Ceramic Panel Heaters

Ceramic Panel Heaters

Elstein Panel Heaters are versatile ceramic infrared radiators designed for a vast range of industrial heating and drying applications. Available in standard square and rectangular dimensions, these heaters generate long-wave infrared radiation, typically in the 2-10 µm wavelength range, which is ideal for efficiently heating the surface of many materials. The product line includes various designs to meet specific industrial needs, including models engineered for high temperatures , energy savings , fast thermal response , maximum power , extended service life , and low-profile installation.

Products in this series

Browse product models

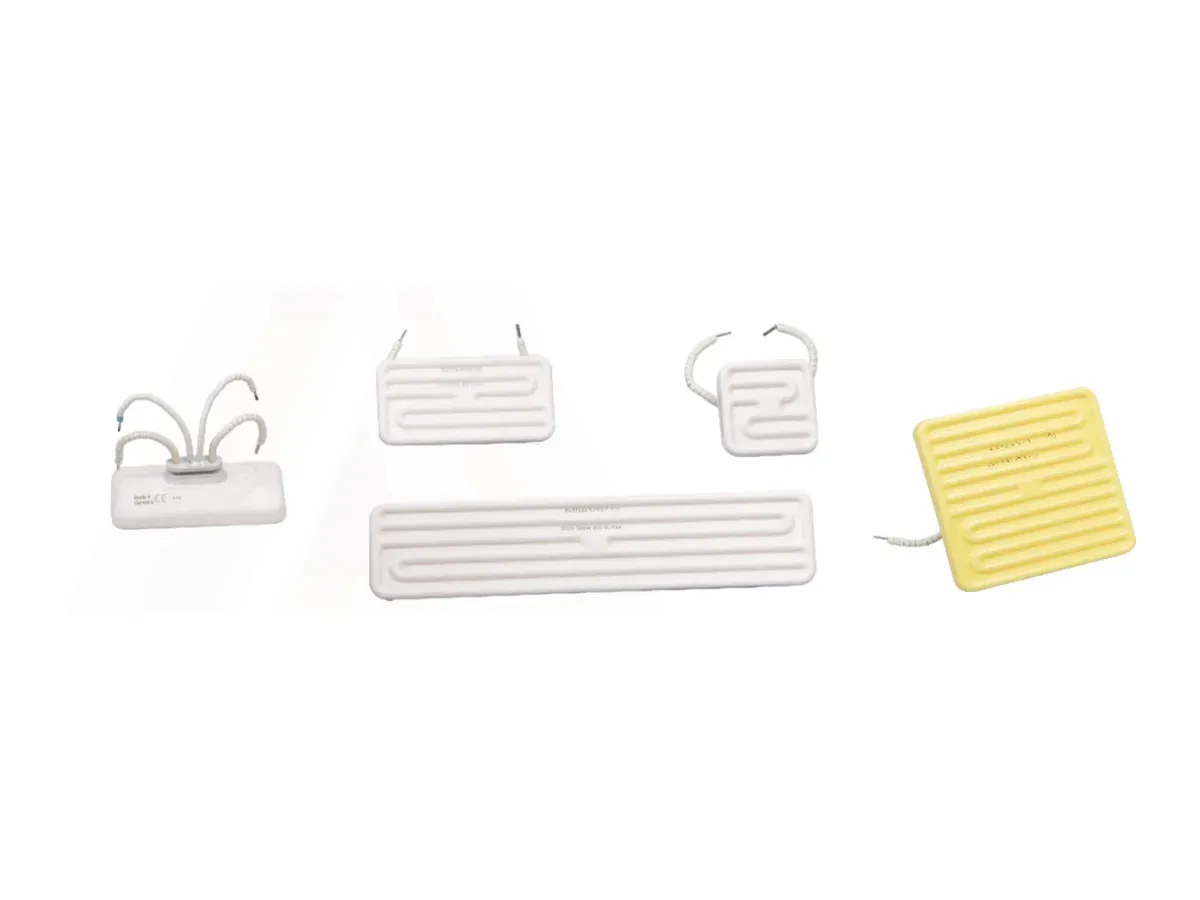

Elstein FSR Series Ceramic Infrared Heaters

Elstein FSR Series Ceramic Infrared Heaters

Elstein FSR series are panel radiators designed to produce maximum output in the form of heat energy. They are constructed using a ceramic full-pour casting process with a firmly burnt-in heating coil. The heater incorporates a highly heat-proof resistance wire that remains constant over the entire temperature range, ensuring a longer service life and safety against damage. The glaze used has excellent radiation properties, resulting in very high radiation efficiency. A version with a color-changing feature is also available.
Elstein HTS Series High Temperature Ceramic Heaters

Elstein HTS Series High Temperature Ceramic Heaters

Elstein HTS High Temperature Heaters are ceramic infrared panel heaters designed for operating temperatures up to 900°C and surface ratings up to 64 kW/m². They are produced using a hollow-casting ceramic process and are filled with thermal insulation material. This design improves the radiant power output to the material being heated and significantly reduces heat dissipated in the wiring space. Compared to heaters made with a full-poured casting process, HTS heaters have a considerably reduced heating-up time and can enable energy savings of up to 25%, depending on the application.

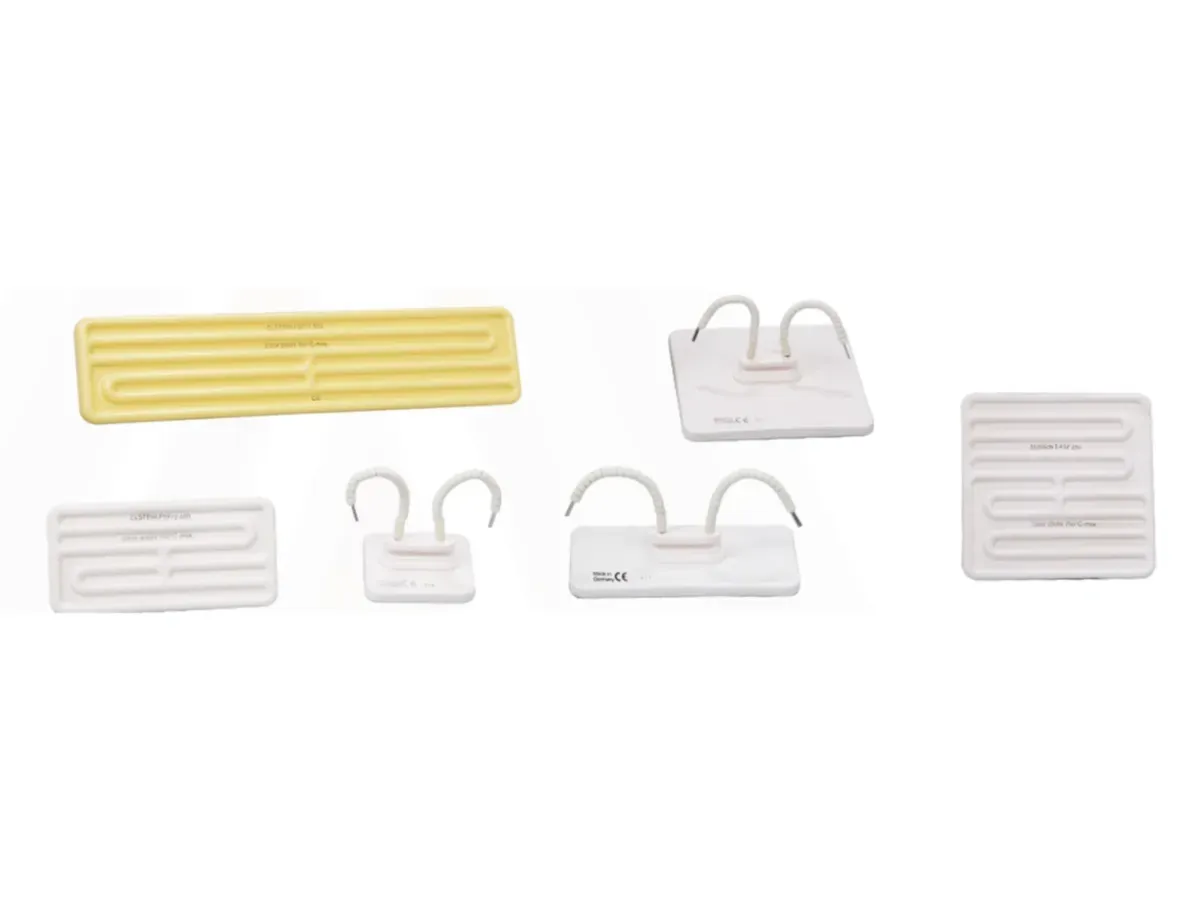

Elstein FSF Series Low Profile Ceramic Heaters

Elstein FSF Series Low Profile Ceramic Heaters

Elstein FSF panel radiators are ceramic infrared heaters with a low overall height, produced using a full-pour casting ceramic process. They are designed for operating temperatures up to 720°C and surface ratings up to 64 kW/m². Compared to Elstein radiators with a standard socket, the overall height of the FSF series has been reduced by approximately 45%. This low-profile design enables space-saving installation, making it particularly useful for retrofitting machines where space may be limited. FSF radiators are available in customary market dimensions, allowing for easy replacement.

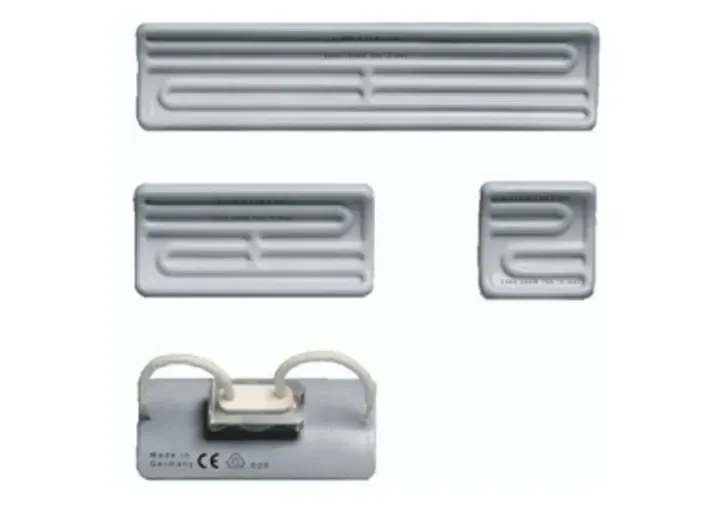

Elstein MAXLIFE FSM Series Heaters

Elstein MAXLIFE FSM Series Heaters

The Elstein MAXLIFE FSM series are ceramic infrared heaters specifically engineered for maximum service life. With specifications similar to standard panel heaters, the FSM series is the ideal choice for industrial applications where long-term reliability and minimal downtime are critical. These heaters operate at temperatures up to 720°C and are available in common market dimensions.

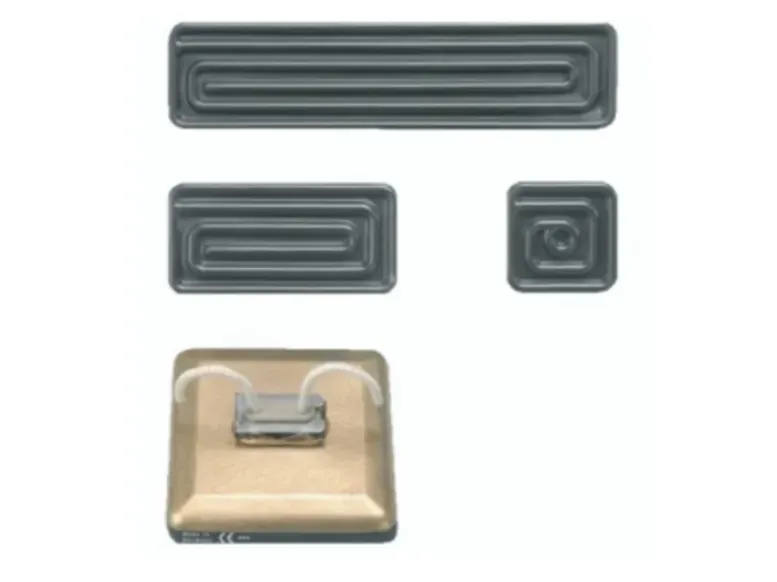

Elstein SHTS Series Super High Temperature Heaters

Elstein SHTS Series Super High Temperature Heaters

The Elstein SHTS series are panel radiators designed for maximum power output. Referred to as Super High Temperature Heaters , they are suited for demanding industrial applications that require high performance and operating temperatures up to 860°C. Their high power density makes them ideal for processes that need rapid heating rates.

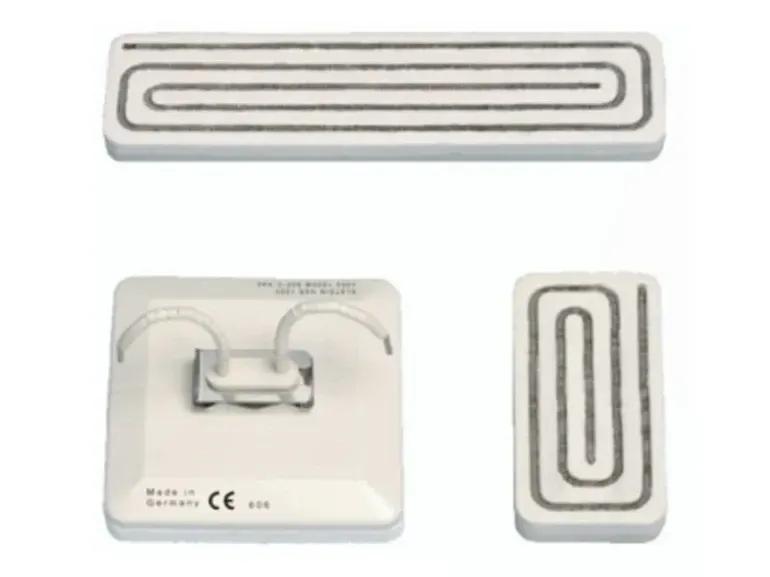

Elstein HSR Series Fast Response Heaters

Elstein HSR Series Fast Response Heaters

The Elstein HSR series are panel radiators distinguished by their short heat-up and cool-down times. This fast thermal response makes them ideal for manufacturing processes that involve rapid cycling or require precise temperature changes. They operate at high temperatures up to 860°C and can be integrated into larger systems like the BSI construction panels.

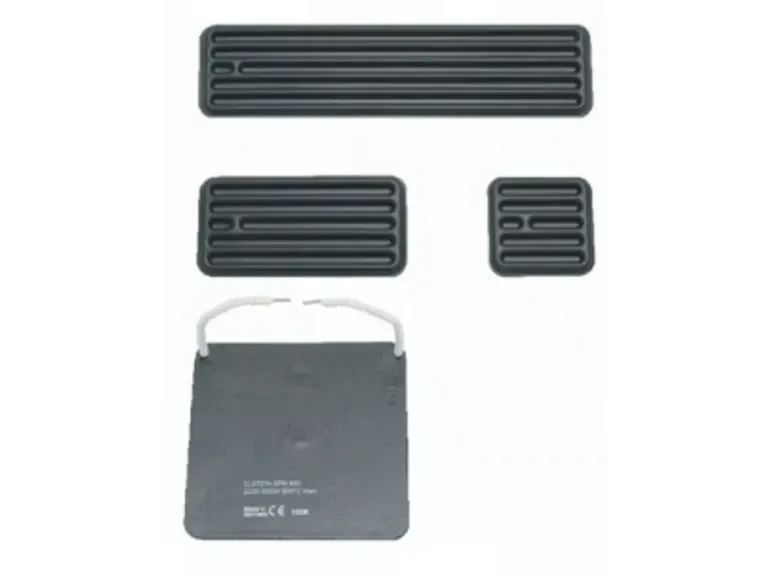

Elstein SFH Series Flat Ceramic Heaters

Elstein SFH Series Flat Ceramic Heaters

The Elstein SFH series are flat ceramic heaters designed for space-saving installation. Their low-profile construction makes them an excellent choice for applications with limited space that also require high process temperatures, as they can operate up to 800°C.

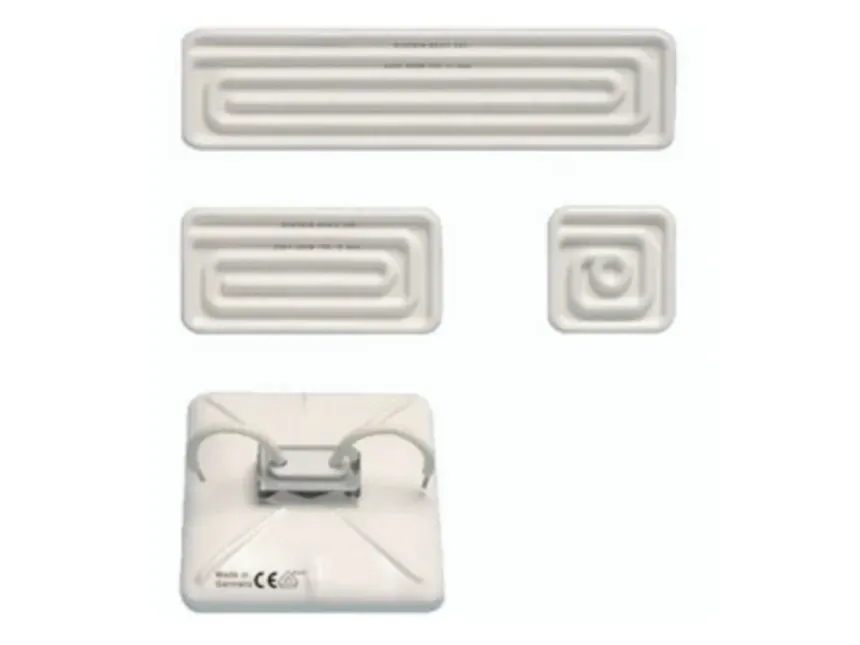

Elstein HFS Series Ceramic Heaters

Elstein HFS Series Ceramic Heaters

The Elstein HFS series are ceramic infrared heaters available in standard panel dimensions. They are designed for applications requiring moderate heat, with a typical operating temperature of up to 630°C and a maximum surface rating of 38.4 kW/m².

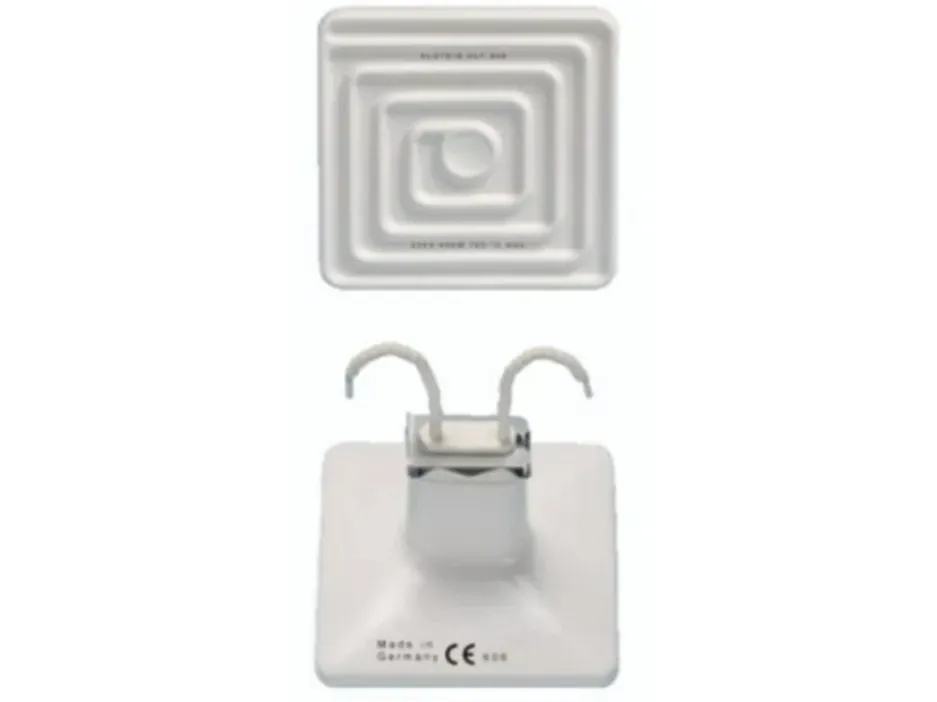

Elstein HLF Series Ceramic Heaters

Elstein HLF Series Ceramic Heaters

The Elstein HLF series consists of square ceramic panel heaters. They are designed for applications requiring uniform heating over a square area at moderate temperatures, operating up to 630°C with a maximum surface rating of 41.6 kW/m².

Key Features

  • Efficient long-wave infrared heating for various materials.
  • Durable design with extended service life.
  • Significant energy savings in industrial processes.
  • Capability for high-temperature applications.
  • Fast thermal response for precise process control.
  • Flexible installation options, including low-profile designs.

Common Applications

Industrial drying processes (e.g., paints, coatings, textiles). Curing of adhesives, resins, and powder coatings. Pre-heating for plastic thermoforming and molding. Annealing and stress relief for glass and plastics. Food processing, warming, and catering. Sterilization and hygienic heating applications.
