Elstein SHTS Series Super High Temperature Heaters
Ceramic Infrared Heaters›Ceramic Panel Heaters

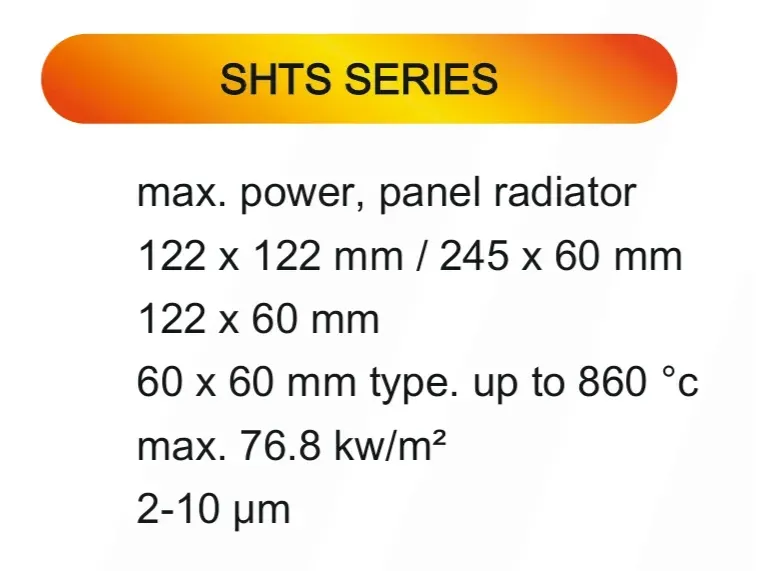

Elstein SHTS super-high-temperature ceramic panel radiators, supplied by Aura Heat Energy in Chennai. SHTS radiators offer the highest surface rating of the Elstein panel radiators, for processes that need maximum power in a small area. They emit long-wave infrared (about 2–10 µm) at surface temperatures up to 860 °C and surface ratings up to 76.8 kW/m². Sizes: 122 × 122 mm, 245 × 60 mm, 122 × 60 mm, 60 × 60 mm. Typical uses include heating plastic sheet in thermoforming machines, heating GRP and CFRP parts and tempering glass. To order, send us the type, size, wattage and voltage.
Key Features
- The highest surface rating of the Elstein panel radiators
- Long-wave infrared, approx. 2–10 µm
- Surface temperature up to 860 °C
- Surface rating up to 76.8 kW/m²
- Genuine Elstein product, supplied from Chennai
Common Applications
Plastics ProcessingCuring and DryingHeating plastic sheet in thermoforming machinesHeating GRP and CFRP parts
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Elstein |
| Supplied by | Aura Heat Energy, Chennai |
| Emitter type | Ceramic infrared heater (long wave) |
| Wavelength | Approx. 2–10 µm |
| Maximum surface temperature | Up to 860 °C |
| Maximum surface rating | Up to 76.8 kW/m² |
| Sizes | 122 × 122 mm, 245 × 60 mm, 122 × 60 mm, 60 × 60 mm |
| Power range | 60–1,000 W in four designs |
| To order | Type, size, wattage and voltage |
