Twin Tube Medium Wave Infrared Heater (15 x 33mm)

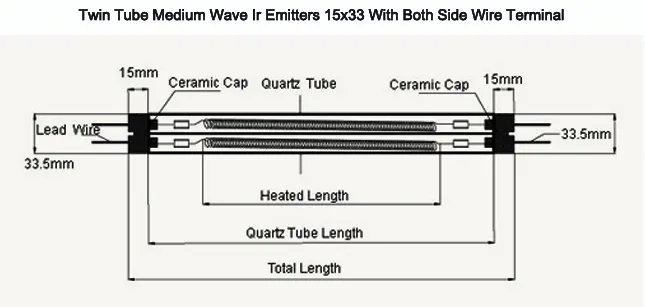

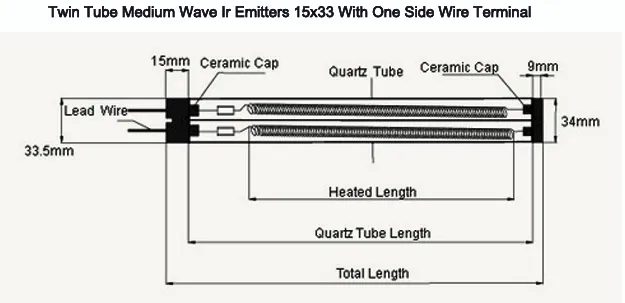

A high-performance twin tube medium wave infrared emitter designed for demanding industrial heating applications. This larger model features a cross-section of 15×33mm and utilizes Ni-Cr or Fe-Cr-A1 resistance wire as its heating filaments. With an operating temperature of up to 900 ∘ C and a quick response time of around 1 minute, it provides powerful and efficient heating. It is built for longevity with an average working life of up to 10,000 hours. For maximum directional heating, it can be ordered with an integrated gold or ceramic coating on the rear side to act as a reflector. The heater is available in various wiring configurations to suit different installation needs.
Key Features
- High power output with rapid heating (approx. 1-minute response time)
- Durable construction for extended lifespan (up to 10,000 hours)
- Efficient energy transfer due to medium-wave infrared emission
- Directional heating enhancement with optional gold or ceramic reflector coating

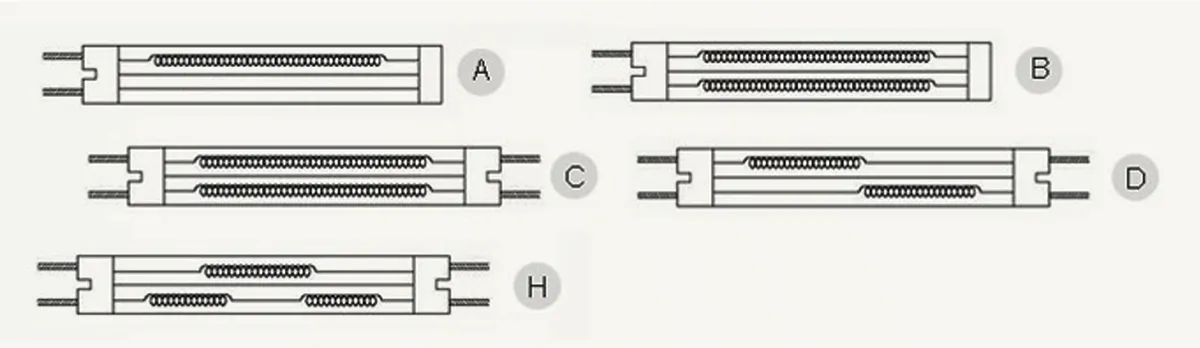

- Flexible installation options with various wiring configurations
- High operating temperature up to 900°C for demanding processes
Common Applications
