Twin Tube Medium Wave Infrared Heater (11 x 23mm)
Medium Wave Infrared Heaters
›
Twintube Medium Wave Infrared Heaters

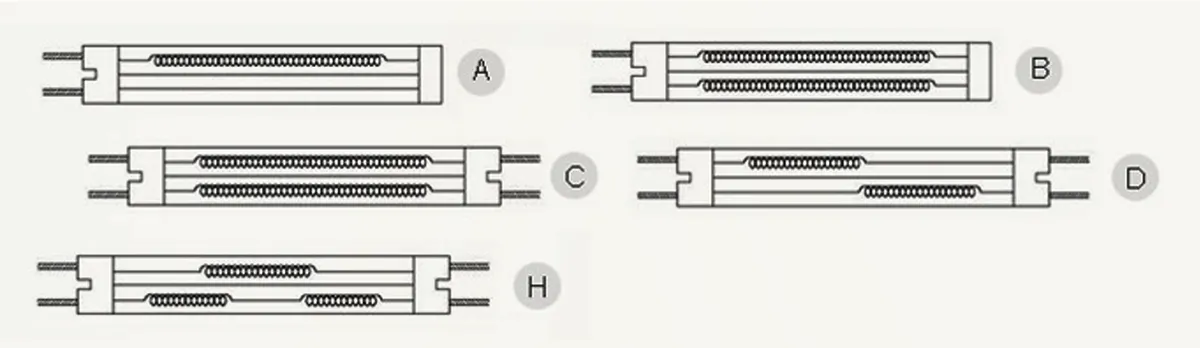

A high-performance twin tube medium wave infrared emitter designed for various industrial heating applications. This model features a cross-section of 11×23mm and utilizes Ni-Cr or Fe-Cr-A1 resistance wire as filaments. With an operating temperature of up to 900∘ C and a response time of around 1 minute, it delivers efficient heating with an average working life of up to 10,000 hours. For enhanced efficiency, it can be equipped with a gold or ceramic coating on the rear side to act as a reflector. The heater is available in multiple wiring configurations, including terminals on one side or on both sides.
Key Features
- Rapid heating response time (approx. 1 minute)
- High operating temperature up to 900°C
- Long working life (up to 10,000 hours)
- Efficient energy transfer due to medium-wave infrared radiation
- Enhanced efficiency with optional gold or ceramic reflector coating
- Flexible wiring configurations (single or dual-sided terminals)
Common Applications
Industrial drying processes (e.g., paint, coatings)
Plastics and polymer processing (e.g., thermoforming, curing)
Food processing (e.g., baking, toasting)
Textile and fabric treatment (e.g., pre-heating, setting)
Chemical curing and processing
Woodworking (e.g., bending, drying)
